PARKSIDE® 20V cordless combination device 4in1 »PKGA 20-Li C2«

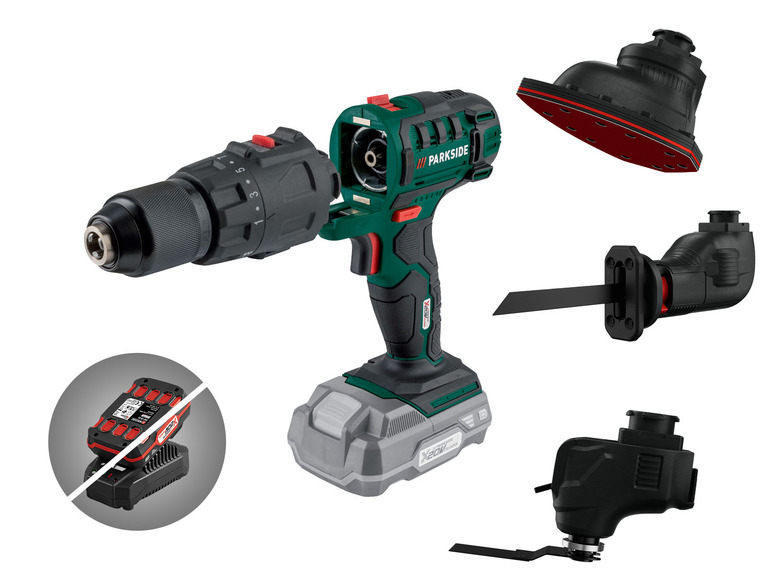

Go to full screen view: PARKSIDE® 20V cordless combi tool 4in1 »PKGA 20-Li C2« - Image 1

PARKSIDE® 20V cordless combi tool 4in1 »PKGA 20-Li C2«, without battery and charger
properties

On/off switch with speed control
quick stop
Ergonomic handle with soft grip
IC in the device housing
IC protection functions device:
Overvoltage protection
Output short circuit monitoring
Cell temperature monitoring
discharge monitoring
deep discharge protection
Robust plastic carrying case
Included accessories: 6 screw bits, 50mm (CRV), 6 drill bits (1.5/2/3/4/5/6mm), 1 bit extension 50mm, 1 metal saw blade HSS 150/18TPI, 1 wood saw blade HCS 150/6TPI, 5 sanding sheets: 2xP60, 2xP120, 1x P240, 1 multi-oscillation accessory set (1 scraper, 1 plunge saw blade, 1 delta sanding plate + 3x sandpaper: P60, P80, P120(93 x 93 x 93mm)

Technical specifications

Speed: 21000 rpm
Engine type: 755 engine
Drill driver attachment:
2-speed gearbox
Idle speed (1st gear / 2nd gear): 0-400 / 0-1350 rpm
13 mm drill chuck, metal
Spindlelock function
Torque: 35 Nm (hard screwing)
Torque levels: 19+1
Concentricity: max. 0.35mm at 75mm length
Sound pressure level: max. 75 dB(A)
Sound power level: max. 94 dB(A) (according to GS report)
Saber saw attachment:
Speed: 0-3200rpm
Knife quick change system
Multi-sander attachment:
Speed: 0-9000rpm
for sandpaper 138x97mm
Multi-tool attachment:
Speed: 0-20000rpm
Oscillation 3.0°
Quick-change system (Quick-Change)

material

PA6+GF30

Dimensions

Motor unit and drill/driver attachment: approx. 23.2 x 6.95 x 19.5 cm
Reciprocating Saw Attachment: Approx. 17.6 x 11.5 x 6.8 cm
Multi-sander attachment: approx. 13.7 x 9.8 x 9.3 cm
Multi-tool attachment: approx. 9.5 x 5.5 x 10.3 cm
Suitcase: approx. 42.1 x 32 x 11.3 cm

Weight

Motor unit: approx. 640 g
Drill driver attachment: approx. 596 g
Saber saw attachment: approx. 800 g
Multi-sander attachment: approx. 370 g
Multi-tool attachment: approx. 384 g
Suitcase: approx. 1190 g
