Posted on

‘SPEED’ CAR SEAT CUSHION

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4304493716223
  • 4304493716230
  • 4304493716247

IAN

97768

Product description

  • ‘SPEED’ CAR SEAT CUSHION
  • Extra padding for improved seat comfort
  • One size – includes high back section
  • Also suitable for seats with side airbags
  • Protects upholstery from dirt and wear
  • With elasticated straps for easy attachment
  • Washable, colour fast and lightfast
  • Suitable for most standard car models
Posted on

MINI COMPRESSOR UMK 10 A1

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4035485006144

IAN

89889

Product description

  • MINI COMPRESSOR UMK 10 A1
  • Operates from a 12V connection (cigarette lighter)
  • Compact and lightweight – only approx. 1.7kg
  • Operating pressure up to max. 10 bar
  • Exchangeable overload protection

Technical data
Rated voltage …………………….12 V
Nominal current consumption ………..7 A
Max. current consumption …………..14 A
Maximum pressure ………………… 10 bar
Continuous operation ………max. 5 min*
Air flow rate ……………………… 35 l/min
Weight ……………………..approx. 1.7 kg

  • Continuous operation: do not operate the device
    for longer than 5 minutes without interruption;
    then take a rest period of 20 minutes.
Posted on

HYDRAULIC TROLLEY JACK

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4304493689985

IAN

94598

Product description

  • HYDRAULIC TROLLEY JACK
  • Makes light work of lifting and lowering vehicles
  • Easy to manoeuvre with 2 fixed and 2 swivel castors
  • Load capacity up to 2 tons
  • Lifting height approx. 135-342mm (with supplied adaptor approx. 150-357mm)
  • Adjustable lowering speed (max. 0.15 m/s)
  • With convenient handle and detachable lifting rod

Description of parts
1 Lifting handle
2 Lifting arm
3 Support plate
4 Carrying handle
5 Release valve
6 Lifting handle socket
7 Cover
8 Relief valve
9 Adapter
10 Hex bolt
11 Nut
Technical data
Stroke: 135–342 mm
150–357 mm (with adapter )
Maximum load: 2000 kg
Hydraulic oil
grade: SAE 10
Hydraulic oil
quantity: 115 ml
Maximum
force on lever: 350 N

Posted on

HEATED MASSAGE CUSHION UAMM 12 B1

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4019641030075

IAN

90543

Product description

  • HEATED MASSAGE CUSHION
  • 2 in 1 function: soothing massage and comfortable warmth
  • 6 massage motors for the shoulders, back and thighs
  • 8 massage programmes with optional heat function
  • Clear control panel with backlit LCD display
  • Automatic switch-off after 30 minutes
  • Also ideal for at home – e.g. on the chair or couch
  • Includes mains power adaptor and 12V adaptor, each with 180cm of cable
  • Easy fitting with elastic straps
  • Integrated storage bag for the remote control

Technical details
Seat cushion
Input voltage 12 V
Current consumption max. 1 A
Power consumption approx. 12 W
Mains adapter type IVP 1200 – 1000 B
Input voltage 100–240 V, 50/60 Hz
Current consumption 0.5 A
Output voltage 12 V
Output current 1 A
Protection class II /
Car adapter
Input voltage 12 V
Output voltage 12 V
Output current max. 1 A

Posted on

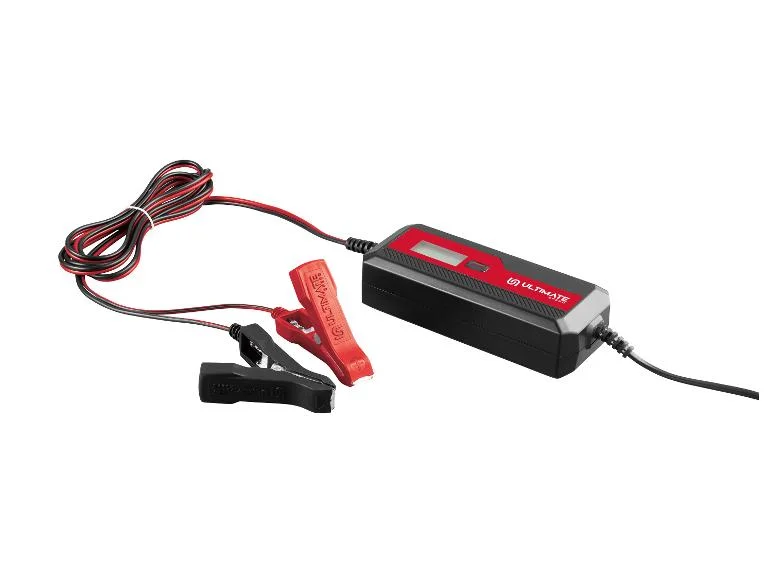

CAR BATTERY CHARGER ULGD 3.8 A1

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4019641029260

IAN

92517

Product description

  • CAR BATTERY CHARGER ULGD 3.8 A1
  • Intelligent microprocessor control with diagnostics programme and controlled charging process
  • For all 6V or 12V car and motorcycle batteries with 1.2-120Ah capacity
  • Protected against reverse polarity, short circuit and overload
  • Pulse charge to recharge flat batteries*
  • Long-term connection for optimal charge retention without sulphate formation
  • 4 programmes for optimal adaptation to the battery type
  • LCD display for charging programmes, voltage value and charge status
  • LEDs for polarity error warning and stand-by mode

Intended use
The Ultimate Speed ULGD 3.8 A1 is a multistep car
battery charger (also called appliance in the following) for charging and charge retention of 6V or 12V
lead batteries (in the following called battery in the
following). These may be the types AGM-Ca/CaGEL-MF-VRLA with electrolyte solution or gel.
The manufacturer is not liable for damage caused
by improper use. The device is not intended for
commercial use. Only use indoors.
Scope of delivery
1 Charger
2 Clamps (1 red, 1 black)
1 Instructions for use
Parts description
See Figure A:
1 12V 0.8A-(Programme 2)
2 12V 3.8A-(Programme 3)
3 12V 3.8A-(Programme 4)
4 6V 0.8A-(Programme 1)
5 LED reverse connection
6 LED stand-by
7 Charge display
8 Condition display
9 Voltage display
10 Programme selection button (MODE)
See Figure B:
11 Charger
12 Fastening eyelets
13 Mains lead
14 „+“ pole clamp (red)
15 „-“ pole clamp (black)
16 „+“ pole connector cable (red) inc. lug
17 „-“ pole connector cable (black) inc. lug
Technical Data
Input voltage: 220–240V∼ 50/60Hz
Rated power: 60W
Rated voltage outgoing: 6V /12V
Rated output current: 0.8A/3.8A
Ambient temperature: 0°C to 40°C
Housing protection type: IP 65
Protection class: II /
Battery types: 6V lead acid battery
1.2Ah–14Ah
12V Lead acid battery
1.2Ah–120Ah

Posted on

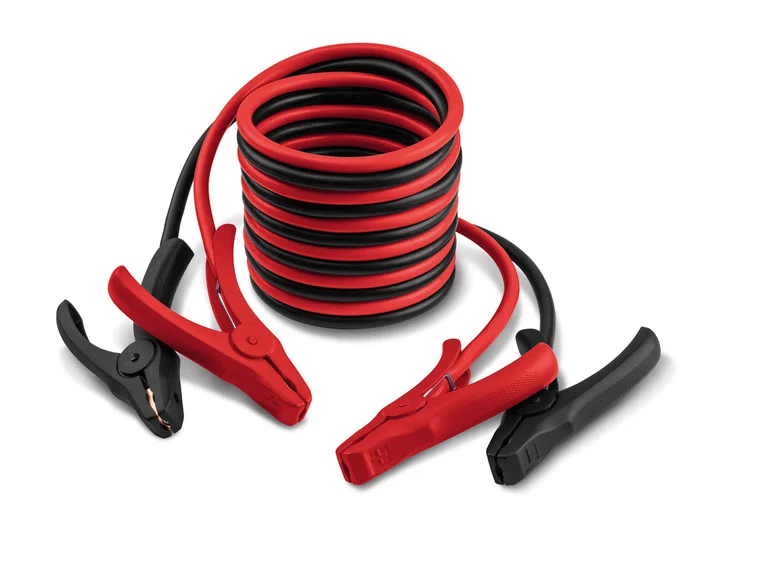

ALUMINIUM JUMP LEADS

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4038373038791

IAN

91449

Product description

  • For all standard vehicles
  • With high-quality copper-coated aluminium core
  • With fully insulated Best-Contact terminals
  • Easy handling with highly flexible cable
  • Modern light metal technology as per DIN Safety Standard 72553-25
  • Cable length: 2 x approx. 3.5m
  • Corresponds to the conductance of a 25mm² copper cable
  • For petrol engines up to 5500cc and diesel engines up to 3000cc
  • Voltage: 12 / 24V
Posted on

CAR COVER

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4304493653917
  • 4304493653924
  • 4304493653931

IAN

89878

Product description

  • Perfect fit with elasticated edge
  • Protects your car from snow, ice, dirt, blossom, tree sap, etc.
  • Made from water-repellent and durable polyester
  • Includes practical storage bag
Posted on

CAR HALF BODY COVER

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4304493667969
  • 4304493667976
  • 4304493667983

IAN

91988

Product description

  • Protects your car from snow, ice, dirt, blossom, tree sap, etc.
  • Made from durable, water-repellent and UV-resistant film
  • Weather- and temperature-resistant from -40 up to +70°C
  • Strengthened eyelets for attaching securely – including 6 elasticated bands
Posted on

CAR SEAT COVER SET

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 9001778128751
  • 9001778128768
  • 9001778128775

IAN

90578

Product description

  • Complete set for 2 front seats, 1 back seat bench and 5 headrests
  • Also suitable for seats with side airbags
  • Protects upholstery from dirt and wear
  • One size – also suitable for split-fold rear bench seats
  • Washable, light and colour fast
  • Includes instructions, mounting strip for fitting to head rests and attachment hooks
  • In practical carry bag
Posted on

‘Patrese’ Car Seat Cushion

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 9001778125545
  • 9001778125552
  • 9001778125569

IAN

91694

Product description

  • ‘Patrese’ Car Seat Cushion
  • Extra padding for comfort
  • One size – includes high back section
  • Also suitable for seats with side airbags
  • Protects upholstery from dirt and wear
  • Easy mounting with elastic loops
  • This seat cover fits all of the following car types (according to the type list CLIX I version 6.5).
  • Car types marked with a * were tested and approved by the TÜV Rheinland Group with respect to their side airbag suitability. Only for standard normal front seats for driver and front passenger (not for sports and bucket seats).
  • Type list version 6.5
  • Δ Front seats
