ULTIMATE SPEED Electronic rectifier ULGD A1, 10 A
Charging current: max. 10A / 5A
Charging programs: 8
temp. ambient: -20 °C / + 50 °C

ULTIMATE SPEED Rectifier ULGD A1, 10 A
Product description

Intelligent microprocessor control system with diagnostic program and fully automatic charging
For all 12 V or 24 V and 20-300 Ah batteries
8 selectable charging modes for optimal adaptation to the battery type
2 power supply programs when replacing the battery
LCD display for charging programs, voltage values and state of charge
Pulse charging to re-energize discharged batteries*
Winter charging mode for low outside temperatures**
Protected against reverse polarity, short circuit and overload
The connection ensures optimum maintenance of charging without sulphation
Cable length: 1 x approx. 2.20 m and 1 x approx. 1.80 m

Technical data

voltage: 220-240V ~ 50-60Hz
charging current: max. 10 A (12 V) / max. 5 A (24 V)
ambient temperature: -20 °C / + 50 °C

Material

material

Dimensions

approx. 22.2 x 10.4 x 5.8 cm

Libra

approx. 805 g

  • When battery voltage >2 V is still present (for 12 V batteries)

** For 12V and 24V battery

Posted on

Cordless Drill PBSA 12 D2

Files

User manual 1

Brand Name

Parkside

EAN

  • 4056233157369

IAN

334017

Product description

  • Cordless Drill PBSA 12 D2
  • 3 level battery status indicator
  • Fast, tool-free changeover between drill and screw functions
  • Quick release, removable, metal keyless chuck
  • Integrated magnetic bit holder in the spindle
  • 2 speed gearbox with adjustable rotation speed and quick stop
  • 19 torque settings and additional drill setting
  • Automatic SPINDLE LOCK spindle restraint
  • Integrated LED light
  • With non-slip, soft-grip elements

Technical data
Cordless Drill …………….PBSA 12 D2
Motor voltage U …………………….. 12 V
Idling speed n0
1st gear ………………………..0-350 min-1
2nd gear …………………….0-1300 min-1
Maximum torque ……………………..28 Nm
Span-chuck ………………………. 0.8-10 mm
Weight (without rechargeable battery) ……………………………………… ca. 0.8 kg
Weight (accessories only) ……………0.6 kg
Drilling capacity for
wood …………………….. max. 25 mm
steel ……………………….. max. 8 mm
Sound power level (LpA) ………………. 70.2 dB(A), KpA= 5 dB
Sound power level (LWA) …………….. 81.2 dB(A); KWA= 5 dB
Vibration (ah ) Drilling in metal ……………… < 2.5 m/s2
Screwdriving …………………. < 2.5 m/s2 K= 1.5 m/s2
Rechargeable battery (Li-ion) …………………… PAPK 12 A1
Number of cells ……………………………..3
Nominal voltage ……………………. 12 V
Capacity ……………………………….2.0 Ah
Energy ………………………………….24 Wh
Charging time ………………………..ca. 1 h
Temperature…………………….. max. 50 °C
Charging process ……………… 4 – 40 °C
Operation ……………………..-20 – 50 °C
Storage ………………………….. 0 – 45 °C
Charger …………………. PLGK 12 A1
Rated input …………………………….. 50 W
Input voltage/ Input ……………. 220-240 V~, 50-60 Hz
Output voltage/Output …… 12 V ; 2.4 A
Protection class ………………………….. II

Posted on

PARKSIDE 12 V battery »PAPK 12 A3«, 2 Ah Compatible with all devices in the PARKSIDE X series 12 V Team battery voltage: 12 volt battery capacity: 2 Ah

Go to full screen view: PARKSIDE® 12 V battery »PAPK 12 A3«, 2 Ah - Image 1

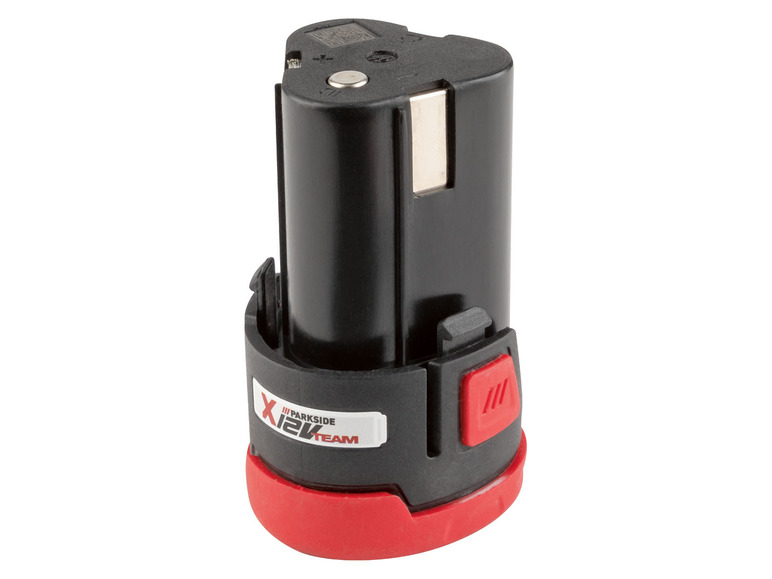

PARKSIDE 12 V battery »PAPK 12 A3«, 2 Ah
properties

Powerful lithium-ion battery
Cell Balancing – longer battery life, increased battery life
Higher battery resource due to evenly loaded cells
Exploits the charging potential to the maximum
Matches the X Series 12V charger
Battery compatible with all devices in the PARKSIDE X 12 V Team series

OUR TIP:

If you do not use the battery for a long time, remove it from the device and store it in a clean, dry place out of direct sunlight. If the lithium-ion battery is to be stored for a longer period of time, the state of charge must be checked regularly. The optimum state of charge is between 50% and 80%. The optimal storage climate is cool and dry.

Technical specifications

Type: Lithium Ion
Rated Voltage: 12V
Capacity: 2Ah

material

plastic, fiberglass

Dimensions

approx. 8.2 x 5.2 x 4.8 cm

Weight

about 185g

Posted on

PARKSIDE 12 V battery »PAPK 12 B3«, 4 Ah Compatible with all devices in the PARKSIDE X series 12 V Team battery voltage: 12 volt battery capacity: 4 Ah

Go to full screen view: PARKSIDE® 12 V battery »PAPK 12 B3«, 4 Ah - Image 1
Go to full screen view: PARKSIDE® 12 V battery »PAPK 12 B3«, 4 Ah - Image 4

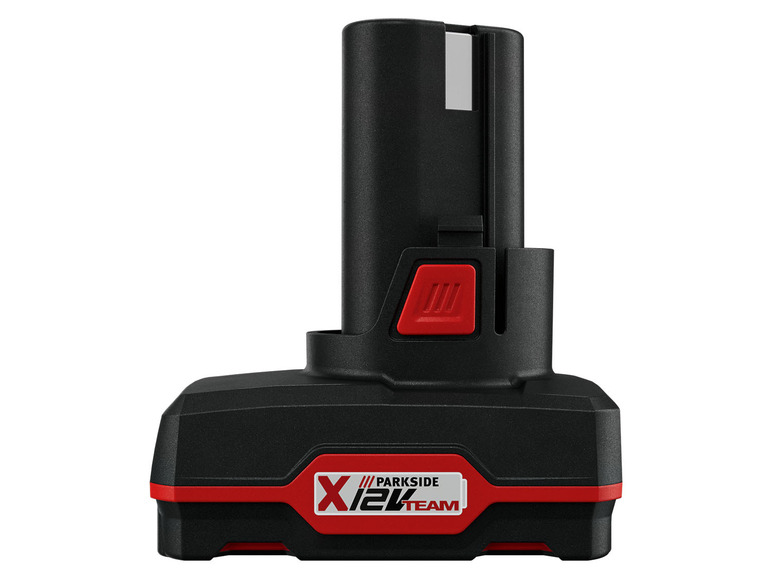

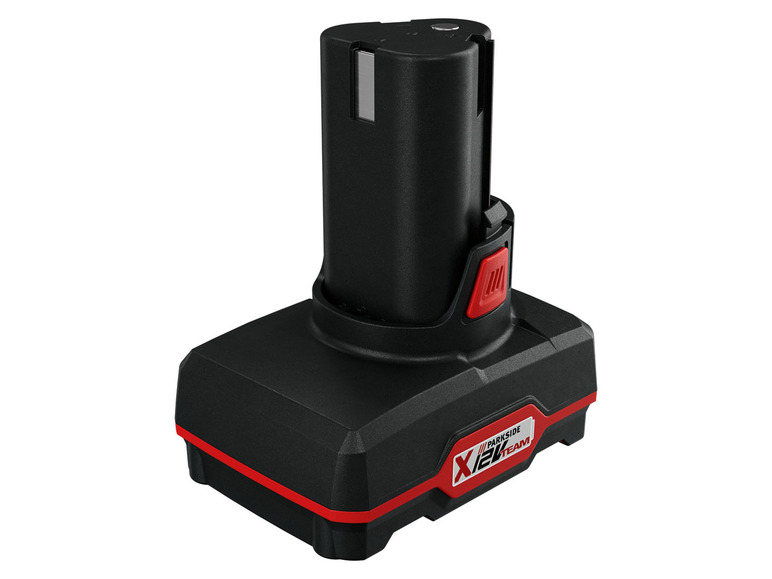

PARKSIDE 12 V battery »PAPK 12 B3«, 4 Ah
properties

Powerful lithium-ion battery
Cell Balancing – longer battery life, increased battery life
Higher battery resource due to evenly loaded cells
Exploits the charging potential to the maximum
Matches the X Series 12V charger
Battery compatible with all devices in the PARKSIDE X 12 V Team series

OUR TIP:

If you do not use the battery for a long time, remove it from the device and store it in a clean, dry place out of direct sunlight. If the lithium-ion battery is to be stored for a longer period of time, the state of charge must be checked regularly. The optimum state of charge is between 50% and 80%. The optimal storage climate is cool and dry.

Technical specifications

Type: Lithium Ion
Rated Voltage: 12V
Capacity: 4Ah

material

plastic, fiberglass

Dimensions

approx. 9 x 6.8 x 10.5 cm

Weight

about 400g

Posted on

PARKSIDE 12 V battery »PAPK 12 D1«, 5 Ah, with cell balancing Compatible with all devices in the PARKSIDE X series 12 V Team battery voltage: 12 volt battery capacity: 5 Ah

Go to full screen view: PARKSIDE® 12 V battery »PAPK 12 D1«, 5 Ah, with cell balancing - image 1
Go to full screen view: PARKSIDE® 12 V battery »PAPK 12 D1«, 5 Ah, with cell balancing - image 3

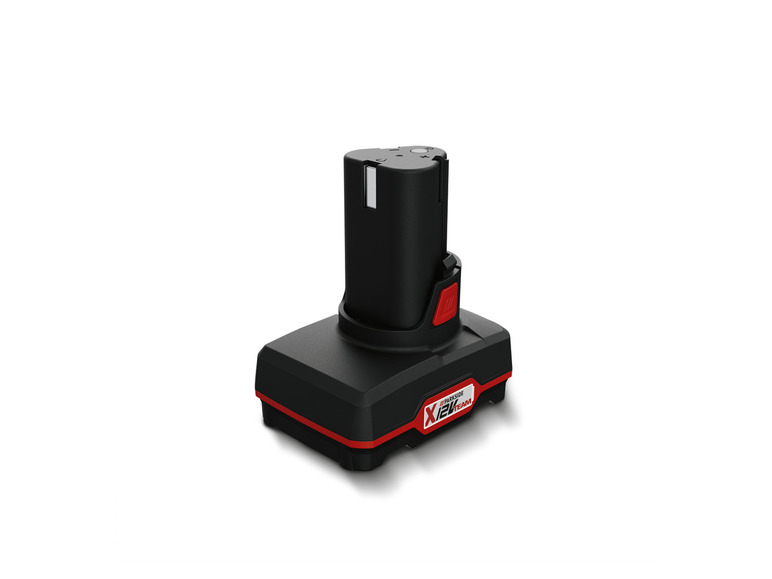

PARKSIDE 12 V battery »PAPK 12 D1«, 5 Ah, with cell balancing
properties

Powerful 12 V (5 Ah) lithium-ion battery
With Cell Balancing – longer battery runtime, longer battery life
• Higher battery resource thanks to evenly loaded cells
• Exploits the charging potential to the maximum
Matches the X Series 12V charger
Battery compatible with all devices in the PARKSIDE X 12 V Team series

OUR TIP:
If you do not use the battery for a long time, remove it from the device and store it in a clean, dry place out of direct sunlight. If the lithium-ion battery is to be stored for a longer period of time, the state of charge must be checked regularly. The optimum state of charge is between 50% and 80%. The optimal storage climate is cool and dry.

Technical specifications
Type: Lithium Ion
Rated Voltage: 12V
Capacity: 5Ah

Dimensions
approx. 9 x 6.8 x 10.5 cm

Weight
about 400g

Posted on

PARKSIDE 12 V cordless drill »PBSA 12 D4«, without battery and charger From our PARKSIDE X 12 V Team series Speed: max. 1300 rpm Torque: max. 28 Nm

Go to full screen view: PARKSIDE® 12 V cordless drill »PBSA 12 D4«, without battery and charger - Image 1
Go to full screen view: PARKSIDE® 12 V cordless drill »PBSA 12 D4«, without battery and charger - Image 9

PARKSIDE 12 V cordless drill »PBSA 12 D4«, without battery and charger

properties

2-speed gearbox with continuously variable speed and quick stop
Incl. 8 screw bits and 8 HSS drill bits in a practical storage box
right/left rotation
Automatic Spindle Lock
6-point bit holder for screw function
Metal keyless chuck, detachable and can also be used with a 25 mm bit inserted
Drill chuck clamping range: 0.8 – 10 mm
Integrated LED work light
3-stage battery status display on the device
Non-slip soft grip equipment
Includes carrying case
Compatible with all devices in the PARKSIDE X 12 V Team series
Delivery without battery and charger

You can order the right battery and charger here!

Accessories included:

8 screw bits, length 50 mm: Phillips: PH0, PH1, PH2, Pozidrive: PZ0, PZ1, PZ2, slot: SL5, SL6 mm
8 drills, HSS steel: 1.5, 2.5, 3, 4, 5, 6, 8, 10 mm

Technical specifications

Voltage: 12V
Idle speed: 1st gear 0-350 / 2nd gear 0-1300 rpm
Torque: max. 28 Nm
Drill levels: 19+1

Dimensions

approx. 19.6 x 17.5 x 5.7 cm

Weight

Cordless drill without battery: approx. 833 g
Plastic box including bits/drills: approx. 249 g

Posted on

PARKSIDE PERFORMANCE cordless drill set »PBSPA 12 A1«, 12 V, with 39 pcs. accesories
From our PARKSIDE PERFORMANCE series
Battery: 12 volts / 2 Ah
Speed: max. 1750 rpm
Max. drilling diameter: 19 mm in wood / 10 mm in steel

Go to full screen view: PARKSIDE PERFORMANCE cordless drill set »PBSPA 12 A1«, 12 V, with 39 pcs. Accessories - picture 1
Go to full screen view: PARKSIDE PERFORMANCE cordless drill set »PBSPA 12 A1«, 12 V, with 39 pcs. Accessories - picture 6

PARKSIDE cordless drill/driver set »PBSPA 12 A1«, 12 V, with 39 pcs. accesories
properties

In a practical bag
Incl. 2 batteries, 39-piece accessory set and 1 charger
Brushless motor (brushless motor) – particularly long service life due to less wear
Compact design for optimal handling
Powerful 12 V lithium-ion battery (2.0 Ah)
Cell Balancing – longer battery life, increased battery life
Higher battery resource due to evenly loaded cells
Exploits the charging potential to the maximum
60 min fast charger with automatic charge cut-off
3-stage battery status display on the device
Removable metal keyless chuck with Quick Release
2-speed gearbox with continuously variable speed and quick stop
20 pre-selectable torque levels and additional drill setting
Automatic spindle locking SPINDLE LOCK
Integrated LED workpiece lighting
Non-slip soft grip equipment
Compatible with all devices in the PARKSIDE X 12 V Team series
Accessories included: 7 metal drill bits, 7 wood drill bits, 25-piece bit set

Technical specifications

Battery: 12V Lithium Ion (2Ah)
Max Torque: 35 Nm
Speed: 1st gear 0-460 / 2nd gear 0-1750 rpm
Torque levels: 20 + 1 drilling level
Drill chuck clamping range: 0.8-10 mm
Max. drilling diameter: 19 mm in wood / 10 mm in steel

material

Housing: plastic, fiberglass
Drills and Bits: Steel

Dimensions

approx. 17 x 5.7 x 19 cm

Weight

Device: approx. 757 g (without battery)
Battery: approx. 188 g each

Posted on

PARKSIDE® battery »PAPK 12 B3«, 12 volts, 4 Ah
Compatible with all devices of the PARKSIDE X series 12 V Team Battery voltage: 12 V Battery capacity: 4 Ah

Go to full screen view: PARKSIDE® battery »PAPK 12 B3«, 12 volts, 4 Ah - image 1

PARKSIDE® 12 V (4Ah) battery »PAPK 12 B3« suitable for the “X-12V-Team series”
12 V (2 Ah) lithium-ion battery
Cell Balancing – longer battery life, increased battery life
Higher battery resources due to evenly used cells
Maximizes the charge potential
Suitable for the charger of the X 12 V series
Battery compatible with all devices of the PARKSIDE X 12 V Team series

Posted on

PARKSIDE battery »PAPK 12 B3«, 12 volts, 4 Ah
Compatible with all devices of the PARKSIDE X series 12 V Team Battery voltage: 12 V Battery capacity: 4 Ah

PARKSIDE 12 V (4Ah) battery »PAPK 12 B3« suitable for the “X-12V-Team series”
12 V (2 Ah) lithium-ion battery
Cell Balancing – longer battery life, increased battery life
Higher battery resources due to evenly used cells
Maximizes the charge potential
Suitable for the charger of the X 12 V series
Battery compatible with all devices of the PARKSIDE X 12 V Team series

Posted on

PARKSIDE battery »PAPK 12 A2«, 12 volt, 2 Ah (2Ah) battery PAPK 12 A
Compatible with all devices of the “PARKSIDE X 12 V Team” series. Battery voltage: 12 V Battery capacity: 2 Ah

PARKSIDE 12 V (2Ah) battery »PAPK 12 A2«
12 V (2 Ah) lithium-ion battery
Suitable for the X 12 V series charger
Battery compatible with all devices of the “PARKSIDE X 12 V Team” series

OUR TIP:
If you are not going to use the battery for a long time, take it out of the device and store it in a clean, dry place out of direct sunlight. If the lithium-ion battery is to be stored for a longer period, the charge status must be checked regularly. The optimal state of charge is between 50% and 80%. The optimal storage climate is cool and dry.
