Ultimate Speed Portable Cordless Compressor

Powerful cordless mini compressor – ideal for when you‘re out and about
Small, compact and effective
Ideal for inflating tyres in the event of loss of pressure
Suitable for cars, bicycles or leisure items
One battery charge for inflating is sufficient for 1 car tyre 225/55 R16 from 1.5 bar to 2.5 bar /2 motorcycle tyres 2.75- 18 from 0 bar to 2.2 bar / 4 bicycle tyres 20 x 1.75 from 0 bar to 4.1 bar
Lithium battery in FePO4 design with 4x 500mAh (at 12.8V, 6.4Wh)
Pre-selectable air pressure up to 4.1 bar (60 PSI) with automatic switch-off when the pressure is reached
Integrated LED torch
Without power adaptor – sustainable and environmentally conscious
Compressed air hose with 4 adaptors that can be stored in the device: car tyre valve (firmly attached to the hose), bicycle valve, ball needle, universal adaptor
Illuminated LCD display with pressure gauge, battery charge status and battery charging indicator
Includes 12V USB adaptor, USB cable (3.5m), USB-C input (for charging), carry bag and instructions
3-year warranty

ULTIMATE SPEED Mini compressor UMK 10 C2
Working pressure: max. 10 bar
Capacity: max. 35 l/min
Connection: 12V connector

ULTIMATE SPEED Mini compressor »UMK 10 C2«, max. 35 l/min
Product description

12V connection, cigarette lighter
replaceable overload protection
suitable for inflating car tires
integrated pressure gauge
high quality compressed air hose
with carrying handle and 4 anti-vibration feet
cable length: approx. 3 m

included accessories: 4 adapters

Technical data

working pressure: max. 10 bar
air capacity: max. 35 l/min

Dimensions

approx. 16.7 x 9 x 14.5 cm (L x W x H)

Libra

approx. 1.64 kg

PARKSIDE compressor “PKO 24 B2”, 24 l, 1.8 kW
Connected load : 1.8 kW (2.45 HP)
Operating pressure: adjustable up to 10 bar
Boiler volume: 24 l

PARKSIDE compressor “PKO 24 B2”, 24 l, 1.8 kW
Characteristics

Low-vibration and low-noise motor with oil lubrication
24 liter boiler with condensate drain plug
Infinitely adjustable from 0 to approx. 10 bar
Second connection for unregulated boiler pressure output
2 pressure gauges with bar and PSI scale
Pressure reducer for optimal control of the working pressure
Maintenance-friendly, easy-to-clean air filter
Easy transport with two rubberized wheels and practical handle

Accessories included: pressure hose (5 m)

Technical specifications

Connected load: 1.8 kW (2.45 HP)
Suction capacity: 260 l/min
Operating pressure: adjustable up to 10 bar
Boiler volume: 24 l
Effective delivery rate at 7 bar: 103 l/min
Power cord (3m)

material

plastic, aluminum

Dimensions

approx. 62.5 x 32.5 x 62.5 cm

weight

approx. 26.8 kg (without accessories)

PARKSIDE 20V cordless compressor »PKA 20-Li B2«, without battery and charger
From the PARKSIDE X 20 V Team
series Compressor working pressure: 10.3 bar
Air pump air flow: approx. 380 l/min

PARKSIDE® 20V cordless compressor »PKA 20-Li B2«, without battery and charger
Characteristics

Compact 2-in-1 device with a wide range of possible uses
Area of ​​application: compressor + air pump
Easy to use thanks to a clear control deck with instructions
Compressor for high air pressure
Ideal for bicycle tires and inflatable play or sporting goods
Pressure preset with auto shut off
LC display with backlight and pressure display in bar, PSI or kPa
Large volume air pump
Ideal for air mattresses, inflatable boats or inflatable beach items
Also suitable for air extraction
Robust housing with soft grip carrying handle
Integrated hose holder and adapter storage compartment with hinged lid
LED lighting with separate on and off switch
Device compatible with all batteries from the PARKSIDE X 20 V Team series
Delivery without battery and charger
You can order the right battery and charger here.

Accessories included: 1 valve adapter, 1 ball needle, 1 universal adapter, 1 high-pressure hose 75 cm, 1 blower hose 75 cm

Technical specifications

Max. working pressure compressor: 10.3 bar / 150 psi
Air flow air pump: approx. 380 l/min

material

plastic, nylon

Dimensions

approx. 26 x 20.49 x 15.1 cm

weight

approx. 1.54 kg

COMPRESSOR PKO 270 A1

Files

User manual 1

Brand Name

Parkside

EAN

  • 4046664031451

IAN

96894

Product description

  • COMPRESSOR PKO 270 A1
  • Vibration-reduced and low noise motor with oil lubrication
  • 24-litre tank with condense water drain plug
  • Adjustable from 0 to approx. 8 bar
  • Second connection for unregulated tank pressure release
  • 2 manometers with bar and PSI scale
  • Easy to maintain, easy to clean air filter

Technical data
Mains connection 230 V ~ 50 Hz
Motor rating W 1800
Operating mode S1
Compressor speed min-1 2850
Pressure vessel capacity
(in liters) 24
Operating pressure approx. 8 bar
Theoretical intake capacity (l/min) approx. 270
sound power level LWA 97 dB(A)
uncertainty KWA 4 dB
Protection type IP20
Weight of the unit in kg 26
Oil (15W 40) l 0,3
Max. altitude (above mean
sea level)

MINI COMPRESSOR UMK 10 A1

Files

User manual 1

Brand Name

Ultimate Speed

EAN

  • 4035485006144

IAN

89889

Product description

  • MINI COMPRESSOR UMK 10 A1
  • Operates from a 12V connection (cigarette lighter)
  • Compact and lightweight – only approx. 1.7kg
  • Operating pressure up to max. 10 bar
  • Exchangeable overload protection

Technical data
Rated voltage …………………….12 V
Nominal current consumption ………..7 A
Max. current consumption …………..14 A
Maximum pressure ………………… 10 bar
Continuous operation ………max. 5 min*
Air flow rate ……………………… 35 l/min
Weight ……………………..approx. 1.7 kg

  • Continuous operation: do not operate the device
    for longer than 5 minutes without interruption;
    then take a rest period of 20 minutes.

COMPRESSOR PKO 270 A1

Files

User manual 1

Brand Name

Einhell

EAN

  • 4006825593099

IAN

89564

Product description

  • Reduced noise and vibration 1.8kW motor with oil lubrication
  • 24-litre tank with condense water drain plug
  • Adjustable from 0 to approx. 8 bar
  • Second connection for unregulated tank pressure release
  • 2 manometers with bar and PSI scale
  • Easy to maintain, easy to clean air filter
  • Power consumption: approx. 1.8kW (2.45 hp)
  • Operating pressure: adjustable to approx. 8 bar
  • Tank capacity: approx. 24L
  • Suction power: approx. 270L/min
  • Effective delivery rate at 7 bar: approx. 113L/min
  • Accessories included: 10m pressure hose

COMPRESSOR PKZ 180 A1

Files

User manual 1

Brand Name

Parkside

EAN

  • 4043722016726

IAN

93472

Product description

  • Versatile use for compressed air work, e.g. blowing-out and inflating
  • Powerful electric motor for fast pressure build-up
  • Oil-free and low-maintenance operation
  • Robust housing with carrying handle and non-slip feet
  • On/off switch with control light
  • Stowable air pressure hose with quick coupling
  • Built-in accessory compartment

Technical Data
Rated voltage: 220-240V~ 50Hz
Power rating: 1.1 kW
Duty type: S3 15 % 10min
Compressor speed: 3550rpm
Operating pressure: max. 8bar
Theo. Suction capacity: 180 l /min
Noise level Lpa: 74.9 dB (A)
Uncertainty Kpa: 1.93 dB (A)
Sound power level Lwa: 94.9 dB (A)
Uncertainty Kwa: 1.93 dB (A)
Guaranteed
Sound power level: 97 dB (A)
Protection type: IP20
Device weight: approx. 6.0kg
Measured value
corresponds to: ISO 2151
Noise emission measured according to ISO 2151

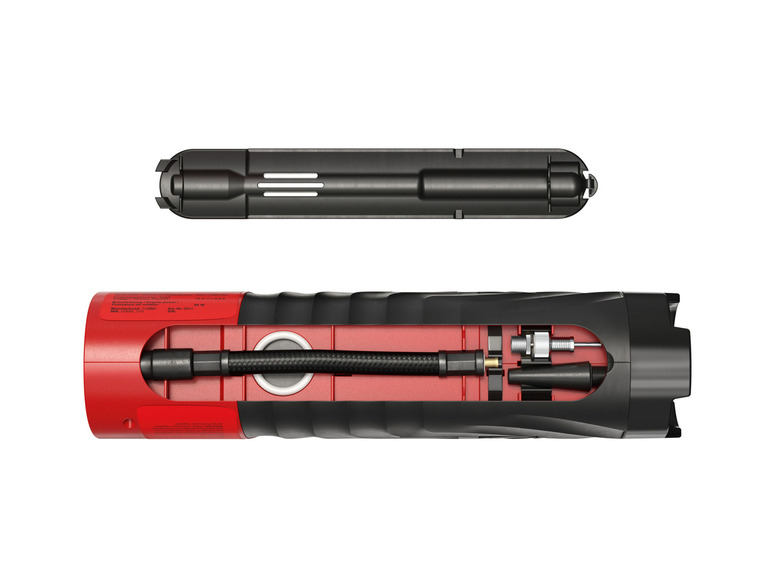

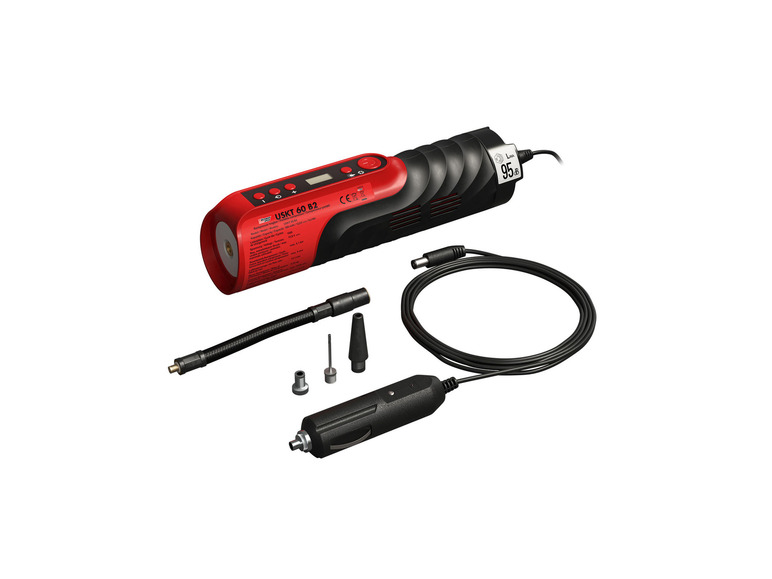

ULTIMATE SPEED compressor portable »USKT 60 B2« Powerful cordless mini compressor – ideal for on the go Material: ABS Dimensions: approx. 23.9 x 6 x 6.5 cm

Gehe zu Vollbildansicht: ULTIMATE SPEED® Kompressor tragbar »USKT 60 B2« - Bild 1
Gehe zu Vollbildansicht: ULTIMATE SPEED® Kompressor tragbar »USKT 60 B2« - Bild 4

ULTIMATE SPEED compressor portable »USKT 60 B2«
properties

Powerful cordless mini compressor – ideal for on the go
Small, compact and effective
Suitable for car, bicycle or leisure items
Lithium battery in FePO4 design with 4 x 500 mAh
Preset air pressure up to 4.1 bar (60 PSI) with auto shut off
Integrated LED flashlight
Compressed air hose with 4 adapters that can be stowed away in the housing: vehicle valve (fixed to the hose), bicycle valve, ball needle, universal adapter
Illuminated LC display with manometer, battery charge status and battery charging process indicator
Incl. 12 V charging cable (3.5 m), mains charging cable (0.75 m), transport bag and instructions
Manometer not calibrated

material

SECTION

Dimensions

approx. 23.9 x 6 x 6.5 cm

Weight

approx. 524 g

ULTIMATE SPEED mini compressor »UMK 10 C2«, with manometer

Suitable for inflating car tires
Operating pressure: max. 10 bar
Air capacity: max. 35 l/min

Go to full screen view: ULTIMATE SPEED® mini compressor »UMK 10 C2«, with manometer - image 1
Go to full screen view: ULTIMATE SPEED® mini compressor »UMK 10 C2«, with manometer - picture 4

ULTIMATE SPEED mini compressor »UMK 10 C2«, with manometer
properties

Operation via 12 V connection (cigarette lighter)
Operating pressure max. 10 bar
Replaceable overload protection
Suitable for inflating car tires
Incl. 4 adapters – e.g. B. for balls, air mattresses, bicycle tires
Integrated pressure gauge
High quality compressed air hose
With carrying handle and 4 anti-vibration feet
Max. air capacity: 35 l/min

material

Cylinder made of precisely manufactured tubular steel
Aluminum cylinder housing/cooling fins
Cylinder head and compressed air duct made of die-cast aluminium
Cylinder head cover made of ABS (heat protection)
Painted metal motor housing
Engine case cover with ABS bracket bracket
Aluminum alloy pump rods/pistons
Piston with Teflon sealing ring (PTFE)
Eccentric housing made of die-cast aluminium
Air inlets/outlets made of stainless steel

Dimensions

Cable length: about 3m
approx. L 16.7 x W 9 x H 14.5 cm

Weight

approx. 1.64 kg
