PARKSIDE depth gauge / inclinometer, digital Types: depth gauge / inclinometer Display: with digital display

Go to full screen view: PARKSIDE® Depth Gauge / Inclinometer, digital - Image 1

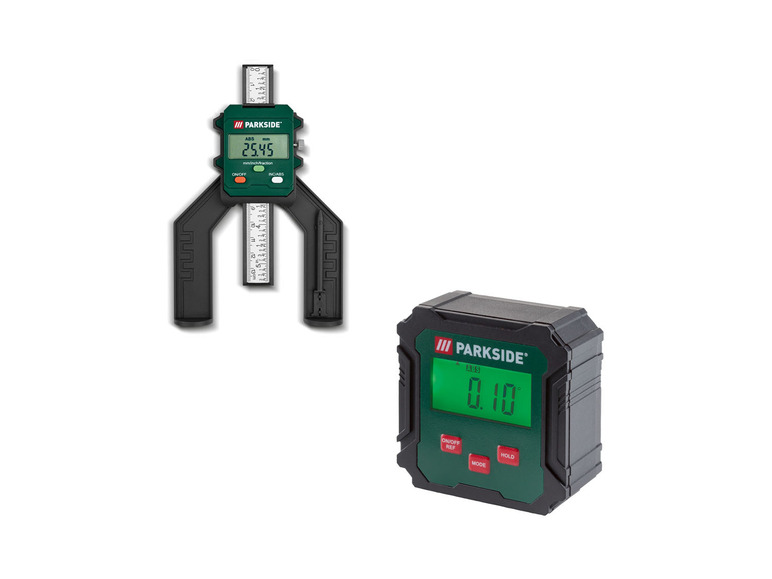

PARKSIDE depth gauge / inclinometer, digital
properties

Digital Depth Gauge:
For depth measurement of bores, milled and saw cuts, joints or tire treads
With self-standing frame and magnetic feet
Measuring regulator with locking screw
Adjustable zero point at each measuring depth (reset)
INC or ABS mode selectable
Choice of measured values ​​in mm or inches (inches in decimal or fractional format)
Automatic shutdown after approx. 5 minutes

Digital inclinometer:
Choice of readings in degrees, percent, mm/m or in/ft
Built-in magnet at the base
Automatic switch off after 3 min
With LCD display

Included accessories

Digital depth gauge: attachable hole gauge, storage box, instructions and battery (1 x 3 V / CR2032)
Digital inclinometer: instructions and battery (1 x 1.5 V / AAA)

Technical specifications

Digital Depth Gauge:
Measuring range: about 0~80mm
Hole Depth: Approx. 0~50.8mm (0~2″)
Resolution: about 0.05mm
Accuracy: ±0.1mm (±0.004″)
Repeatability: Approx. ±0.1mm (±0.004″)
Digital inclinometer:
Measuring range: 4 x 90°
Accuracy: ±0.1° (at 0° and 90°) / ±0.2° (other angles)
Resolution: 0.05°
Power supply: 1 x 1.5V AAA battery

material

Aluminum, plastic, nylon and fiberglass

Dimensions

Digital depth gauge: approx. 110 x 144 x 24 mm
Digital inclinometer: approx. 60 x 60 x 28 mm

Weight

Digital Depth Gauge: Approx. 89g
Digital Inclinometer: Approx. 62g
