PARKSIDE 20V cordless angle grinder »PWSA 20-Li C3«, without battery and charger
From the PARKSIDE X 20 V Team series Speed :
2500–10000 rpm Grinding wheel: Ø 125 mm

PARKSIDE 20V cordless angle grinder »PWSA 20-Li C3«, without battery and charger
Characteristics

For cutting and roughing metal, concrete or tiles
Rubberized housing with robust aluminum front
Infinitely adjustable speed
3-position handle with non-slip soft grip
Easy wheel change thanks to the SPINDLE LOCK spindle lock
Tool-free protective hood quick adjustment
For commercially available discs up to 125 mm Ø
2-in-1 protective hood for cutting and grinding
Incl. carrying case
Device compatible with all batteries from the PARKSIDE X 20 V Team series
Delivery without battery and charger
You can order the right battery and charger here.

Accessories included: 1x metal cutting disc Ø 125 mm, 1x two-hole assembly key

Technical specifications

Rated speed: 2500–10000 rpm
Mount: M14 SPINDLE LOCK

material

plastic, fiberglass

Dimensions

Device: approx. 32.9 x 14.4 x 11.5 cm
Suitcase: approx. 42.5 x 24.5 x 14.7 cm
Two-hole assembly key: approx. 13.1 x 2.9 x 1.9 cm
Grinding wheel: approx. Ø 12.5 x 0.01 cm
Additional handle: approx. 13.9 x Ø 7 cm

weight

approx. 1.54 kg

Posted on

PARKSIDE 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing Compatible with all devices in the PARKSIDE X 20 V Team series Battery voltage: 20 volts Battery capacity: 2 Ah

Go to full screen view: PARKSIDE® 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing - image 1

PARKSIDE® 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing
properties

Powerful lithium-ion battery with 3-level charge status display
Cell Balancing – longer battery life, increased battery life
Higher battery resource due to evenly loaded cells
Exploits the charging potential to the maximum
Compatible with all devices in the PARKSIDE X 20 V Team series

OUR TIP:
To check the battery status, press the “Battery Status” button. The status or
the remaining power is shown in the battery display LED as follows:

♦ RED / ORANGE / GREEN = maximum charge
♦ RED / ORANGE = medium charge
♦ RED = low charge – charge the battery

Technical specifications

Type: Lithium Ion
Rated voltage: max. 20 V
Capacity: 2Ah

Dimensions

approx. 12.7 x 5.2 x 8.4 cm

Weight

approx. 440 g

Posted on

PARKSIDE 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing Compatible with all devices in the PARKSIDE X 20 V Team series Battery voltage: 20 volts Battery capacity: 2 Ah

Go to full screen view: PARKSIDE® 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing - image 1

PARKSIDE 20 V battery »PAP 20 B1«, 2 Ah, with cell balancing
properties

Powerful lithium-ion battery with 3-stage charge status display
Cell Balancing – longer battery life, increased battery life
Higher battery resource due to evenly loaded cells
Exploits the charging potential to the maximum
Compatible with all devices in the PARKSIDE X 20 V Team series

OUR TIP:
To check the battery status, press the “Battery Status” button. The condition or
remaining power is shown to you in the battery display LED as follows:

♦ RED / ORANGE / GREEN = maximum charge
♦ RED / ORANGE = medium charge
♦ RED = low charge – charge the battery

Technical specifications

Type: Lithium Ion
Rated voltage: max. 20 V
Capacity: 2Ah

Dimensions

approx. 12.7 x 5.2 x 8.4 cm

Weight

approx. 440 g

Posted on

PARKSIDE 20 V battery charger »PLG 20 C3«, 4.5 A Compatible with all batteries from the PARKSIDE X 20 V Team series Rated input : 120 W Charging current: 4.5 A

Go to full screen view: PARKSIDE® 20 V battery charger »PLG 20 C3«, 4.5 A - Image 1

PARKSIDE 20 V battery charger »PLG 20 C3«, 4.5 A
properties

With automatic charge cut-off and LED charging indicator
Incl. device for wall mounting (mounting material not included)
Compatible with all batteries from the PARKSIDE X 20 V Team series

Technical specifications

Rated consumption: 120 W
Charging Current: 4.5A
Charging time (at 20 V / 4 Ah): approx. 60 min
Charging time (at 20 V / 2 Ah): approx. 30 min (ready to use)

Dimensions

approx. 15 x 9.2 x 7.1 cm
Power Cord Length: 1.5m

Weight

approx. 395 g

Posted on

PARKSIDE PERFORMANCE 20 V smart battery “PAPS 204 A1”, 4 Ah, controllable via the Lidl Home app
Compatible with all devices in the PARKSIDE X 20 V Team
series Battery voltage: 20 volts
Battery capacity: 4 Ah

Go to full screen view: PARKSIDE PERFORMANCE 20 V smart battery »PAPS 204 A1«, 4 Ah, controllable via Lidl Home App - Image 1
Go to full screen view: PARKSIDE PERFORMANCE 20 V smart battery »PAPS 204 A1«, 4 Ah, controllable via Lidl Home App - Image 4

PARKSIDE PERFORMANCE 20 V smart battery »PAPS 204 A1«, 4 Ah, controllable via the Lidl Home app
properties

Compared to the PARKSIDE battery 20 V / 2 Ah PAP 20 B1:
100% more runtime with the same battery size (dimensions)
70% higher discharge currents for more power
Smart battery technology: Lithium-ion battery in a new, powerful dimension through the use of 21700 cells
Long service life: cell balancing – longer battery runtime and service life thanks to evenly loaded cells
Compact & strong: high energy density with small size
More power: permanently high performance with impressive endurance without loss of performance
Retrieve battery data and configure performance parameters via Bluetooth® using the Lidl Home app
Adjustable modes: Performance, Balanced, Eco and Expert
Configurable for optimal adaptation to the PARKSIDE 20 V cordless device
Battery monitoring – data retrieval on the state of charge, remaining time, charging time, total usage time and much more
Exploits the charging potential to the maximum
Battery display LED with 3-level charge level indicator
Compatible with all devices in the PARKSIDE X 20 V Team series

OUR TIP:
To check the battery status, press the “Battery Status” button. The condition or
remaining power is shown to you in the battery display LED as follows:

♦ RED / ORANGE / GREEN = maximum charge
♦ RED / ORANGE = medium charge
♦ RED = low charge – charge the battery

Technical specifications

Type: Lithium Ion
Rated Voltage: 20V
Capacity: 4Ah
Charge status display: 3 levels
Battery monitoring: via the Lidl Home app

Dimensions

approx. 12.3 x 5.2 x 8.4 cm

Weight

about 600g

Posted on

PARKSIDE PERFORMANCE 20 V cordless combi drill starter set »PSBSAP 20-Li B2«, incl. 97-piece accessory set
From our PARKSIDE X series 20 V team
batteries: 2x 20 volts (2 Ah) Number of blows
: max. 36000 rpm
Torque: max. 80 Nm

Go to full screen view: PARKSIDE PERFORMANCE 20 V cordless combi drill starter set »PSBSAP 20-Li B2«, incl. 97-piece accessory set - Image 1
Go to full screen view: PARKSIDE PERFORMANCE 20 V cordless combi drill starter set »PSBSAP 20-Li B2«, incl. 97-piece accessory set - Image 6
Go to full screen view: PARKSIDE PERFORMANCE 20 V cordless combi drill starter set »PSBSAP 20-Li B2«, incl. 97-piece accessory set - Image 11

PARKSIDE PERFORMANCE 20 V cordless impact drill starter set »PSBSAP 20-Li B2«
properties

Practical starter set in a high-quality aluminum case – incl. 2 batteries, 97-piece accessory set and 1 charger
Brushless motor (brushless motor) – particularly long service life due to less wear
Powerful engine with 2-speed gearbox and switchable high-performance impact mechanism
High-quality metal RÖHM drill chuck with radial locking
Cell Balancing – longer battery life, increased battery life
On/off switch with stepless speed control and quick stop
Integrated LED work light
Ergonomic soft grip equipment
Adjustable additional handle with metal depth stop
clockwise/counterclockwise rotation
3-stage battery status display
In a high-quality aluminum frame case with drawer and metal fasteners
Battery compatible with all devices in the PARKSIDE X 20 V Team series

Accessories included: 1 metal depth stop, 1 cutter knife, 1 tape measure (3 m), ratchet screwdriver (¼”), screwdriver bit holder (¼”), 6 wood drill bits, 6 metal drill bits, 6 masonry drill bits, 2 bit holders (60 mm), 72 bits, 2 Batteries (20 V, 2 Ah), charger (3.5 A)

Technical specifications

Preselection: 21 torque levels + drill level + impact drill level
Max Torque: 80Nm
Impact frequency: 36000 rpm
Rated idle speed: 1st gear: n0 0–400 rpm / 2nd gear: n0 0–2000 rpm
Chuck Capacity: 1.5-13mm
Locking: Automatic – SPINDLE-LOCK
Max. drilling diameter: 65 mm in wood, 16 mm in concrete (without stones), 13 mm in steel

material

Plastic, fiberglass, aluminum

Dimensions

Impact drill with battery: approx. 24 x 22.8 x 9.5 cm
Suitcase: approx. 43 x 30 x 24 cm

Weight

Impact drill with battery: approx. 2.06 kg
Suitcase: approx. 4.2 kg

Posted on

PARKSIDE 20V cordless drill »PABS 20-Li E6« From PARKSIDE X series 20 V team battery: 20 volts (2 Ah) Number of blows : 1st/2nd Gear: 400/1400 rpm Torque: max. 45 Nm

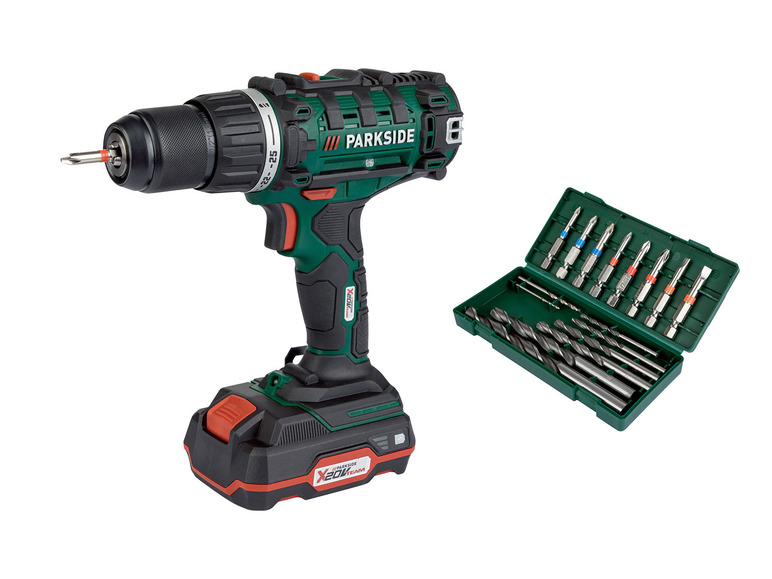

Gehe zu Vollbildansicht: PARKSIDE® 20V Akku-Bohrschrauber »PABS 20-Li E6« - Bild 1
Go to full screen view: PARKSIDE® 20V cordless drill »PABS 20-Li E6« - Image 5

PARKSIDE 20V cordless drill »PABS 20-Li E6«, with battery and charger
properties

Powerful 20 V lithium-ion battery (2.0 Ah)
Powerful engine with 2-speed gearbox
Quick-release drill chuck with radial locking and metal sleeve
Infinitely variable speed with quick stop function
Integrated LED work light
2 bit holders on the device
Non-slip soft grip equipment
Practical belt clip including bottle opener function
Charger with automatic charge cut-off and LED charging indicator
Max. drilling diameter: 30 mm in wood / 13 mm in steel
Battery compatible with all devices in the “PARKSIDE X 20 V Team” series
Accessories included: 8 screw bits (PH0, PH1, PH2 / PZ0, PZ1, PZ2 / SL5, SL6) and 8 HSS drill bits (1.5 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10 mm)

Technical specifications

Battery: 20V Lithium Ion (2.0Ah)
Speed: 1st gear: 0–400 rpm / 2nd gear: 0–1400 rpm
Torque preset levels: 25 + 1 drill level
Max Torque: 45 Nm
Drill chuck span: 1.5 – 13 mm
Charging time: approx. 60 min (at 20 V, 2 Ah)

Dimensions

approx. 211 x 232 x 90 mm

Weight

approx. 1650 g

Posted on

PARKSIDE 2in1 cordless jigsaw and saber saw »PSSSA 20-Li B2«, 20 V

PARKSIDE® 2in1 cordless jigsaw and saber saw »PSSSA 20-Li B2«, 20 V
From our PARKSIDE X 20 V Team
series No- load speed: 800-3000 rpm Stroke
length: 20 mm
Operating modes: fine cut / pendulum stroke

Go to full screen view: PARKSIDE® 2in1 cordless jigsaw and saber saw »PSSSA 20-Li B2«, 20 V - Image 1
Go to full screen view: PARKSIDE® 2in1 cordless jigsaw and saber saw »PSSSA 20-Li B2«, 20 V - Image 4

PARKSIDE 2in1 cordless jigsaw and saber saw »PSSSA 20-Li B2«, 20 V
properties

2-in-1 device: precise cutting guides and flexible cutting
Tool-free change of function thanks to angled, self-locking saw head
Safety switch and speed controller for manual stroke rate regulation
Accelerated sawing progress thanks to switchable pendulum stroke
Pendulum-free fine-cut adjustment
Handle with non-slip soft grip equipment
Integrated LED work light
Incl. carrying case
SAW LOCK quick-release chuck for easy saw blade changes
For standard saw blades – e.g. B. from Parkside, Bosch, Scintilla and many more
Device compatible with all batteries from the PARKSIDE X 20 V Team series
Battery recommendation: 20 V (4 h)
Delivery without battery and charger

You can order the right battery and charger here.

Accessories included: 2 jigsaw blades (for wood and metal), 2 saber saw blades (Swiss Made • for wood and metal)

Technical specifications

Change of function: jigsaw / saber saw
Idle speed: 800-3000 rpm
Stroke length: 20mm
Operating modes: fine cut / pendulum stroke
Cutting capacity saber saw: max. 100 mm in wood / max. 50 mm in metal
Cutting capacity jigsaw: max. 50 mm in wood / max. 4 mm in metal

material

Housing: plastic, fiberglass
Table top: aluminum

Dimensions

approx. 22.4 x 16.8 x 16.5 cm

Weight

1650g

Posted on

PARKSIDE PERFORMANCE 20 V smart battery »PAPS 208 A1«, 8 Ah, controllable via the Lidl Home app
Compatible with all devices in the PARKSIDE X series 20 V Team
Battery voltage: 20 volts
Battery capacity: 8 Ah

Go to full screen view: PARKSIDE PERFORMANCE 20 V smart battery »PAPS 208 A1«, 8 Ah, controllable via Lidl Home App - Image 1

PARKSIDE PERFORMANCE 20 V smart battery »PAPS 208 A1«, 8 Ah, controllable via the Lidl Home app
properties

Lithium-ion battery in a new, powerful dimension thanks to smart battery technology and the use of 21700 cells
Retrieve battery data and configure performance parameters via Bluetooth® using the Lidl Home app
Adjustable modes: Performance, Balanced, Eco and Expert
Configurable for optimal adaptation to the PARKSIDE 20 V cordless device
Battery monitoring – data retrieval on the state of charge, remaining time, charging time, total usage time and much more
Cell Balancing – longer battery runtime and service life thanks to evenly loaded cells
Exploits the charging potential to the maximum
Battery display LED with 3-level charge level indicator
Compatible with all devices in the PARKSIDE X 20 V Team series

OUR TIP:
To check the battery status, press the “Battery Status” button. The condition or
remaining power is shown to you in the battery display LED as follows:

♦ RED / ORANGE / GREEN = maximum charge
♦ RED / ORANGE = medium charge
♦ RED = low charge – charge the battery

Technical specifications

Type: Lithium Ion
Rated Voltage: 20V
Capacity: 8Ah
Charge status display: 3 levels
Battery monitoring: via the Lidl Home app

Dimensions

approx. 12.3 x 7.2 x 8.4 cm

Weight

about 1kg

Posted on

PARKSIDE PERFORMANCE 20 V smart battery “PAPS 204 A1”, 4 Ah, controllable via the Lidl Home app
Compatible with all devices in the PARKSIDE X 20 V Team
series Battery voltage: 20 volts
Battery capacity: 4 Ah

Go to full screen view: PARKSIDE PERFORMANCE 20 V smart battery »PAPS 204 A1«, 4 Ah, controllable via Lidl Home App - Image 1

PARKSIDE PERFORMANCE 20 V smart battery »PAPS 204 A1«, 4 Ah, controllable via the Lidl Home app
properties

Compared to the PARKSIDE battery 20 V / 2 Ah PAP 20 B1:
100% more runtime with the same battery size (dimensions)
70% higher discharge currents for more power
Smart battery technology: Lithium-ion battery in a new, powerful dimension through the use of 21700 cells
Long service life: cell balancing – longer battery runtime and service life thanks to evenly loaded cells
Compact & strong: high energy density with small size
More power: permanently high performance with impressive endurance without loss of performance
Retrieve battery data and configure performance parameters via Bluetooth® using the Lidl Home app
Adjustable modes: Performance, Balanced, Eco and Expert
Configurable for optimal adaptation to the PARKSIDE 20 V cordless device
Battery monitoring – data retrieval on the state of charge, remaining time, charging time, total usage time and much more
Exploits the charging potential to the maximum
Battery display LED with 3-level charge level indicator
Compatible with all devices in the PARKSIDE X 20 V Team series

OUR TIP:
To check the battery status, press the “Battery Status” button. The condition or
remaining power is shown to you in the battery display LED as follows:

♦ RED / ORANGE / GREEN = maximum charge
♦ RED / ORANGE = medium charge
♦ RED = low charge – charge the battery

Technical specifications

Type: Lithium Ion
Rated Voltage: 20V
Capacity: 4Ah
Charge status display: 3 levels
Battery monitoring: via the Lidl Home app

Dimensions

approx. 12.3 x 5.2 x 8.4 cm

Weight

about 600g
