PARKSIDE diamond grinding plate

  • For sharpening all types of cutting tools such as knives, chisels or scissors
  • No oil lubrication required, water is enough
  • Degree of grit:
    • Blue 200: coarse
    • Yellow 300: medium
    • Red 400: fine
  • Material: Diamond coated carbon steel
  • Dimensions: approx. W 25 x H 76 mm
  • With storage bag

PARKSIDE diamond tool sharpener

Practical rod holder with screw fixation and pocket clip
With extendable sharpening rod
For sharpening knife blades, fishing hooks and darts
Red:
Round side for sharpening knife blades, flat side for deburring glass or tile edges
With groove for sharpening fish hooks and darts
With extendable sharpening rod
Blue:
For sharpening chisels, serrated or curved blades
Material:
Handle: aluminum
Blade: carbon steel with diamond coating
Length: approx. 20 cm

PARKSIDE diamond / cutting / grinding discs
Bore: approx. 22.23 mm
Speed: max. 6600 rpm / max. 80 m/s
Diameter: approx . 230mm

Characteristics

For common angle grinders (suitable for e.g. Parkside, Bosch, Black & Decker, Festo, Kress, Makita, Metabo)
Speed: nmax. 6600 rpm / max. 80 m/s
MPA tested
Cutting and grinding wheel set
For building materials made of metal or stone such as pipes, profiles, tiles or panels
6 parts
3 metal cutting discs: cranked
2 stone cutting discs: cranked
1 metal grinding wheel: depressed center
diamond cutting disc
High cutting performance with a long service life
For cutting mineral materials such as concrete, clinker, bricks or roof tiles
For universal dry cutting use

material

steel

Dimensions

Bore: 22.23mm
Cutting and grinding wheel set:
Metal cutting discs: approx. Ø 230 x H 3.2 mm
Stone cutting discs: approx. Ø 230 x H 3.2 mm
Metal grinding wheel: approx. Ø 230 x H 6.0 mm
Diamond cutting disc:
Diamond cutting disc: approx. Ø 230 x H 1.8 mm
Dimensions segments: approx. H 10 x W 2.6 mm

weight

Cutting and grinding wheel set: approx. 1,900 g
Diamond cutting disc: approx. 560 g

PARKSIDE PERFORMANCE diamond drill bits »PDBK 3 A1«
Rated speed: max. 13300 rpm
Working depth: approx. 35 mm

Gehe zu Vollbildansicht: PARKSIDE PERFORMANCE Diamant-Bohrkronen »PDBK 3 A1« - Bild 1

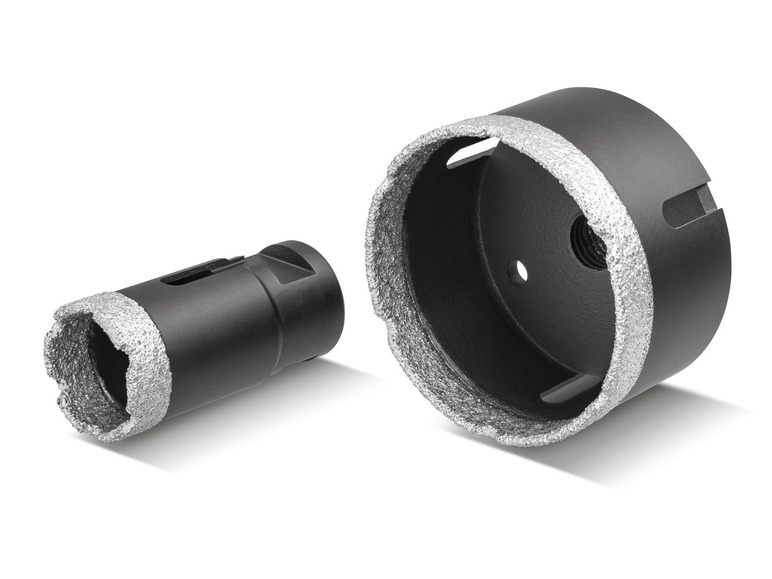

Go to full screen view: PARKSIDE PERFORMANCE diamond core bits »PDBK 3 A1« - image 5

PARKSIDE PERFORMANCE diamond drill bits »PDBK 3 A1«
properties

For all common angle grinders with M14 mount (suitable for e.g. Parkside, Bosch, Black & Decker, Metabo)
Ø 30 / 68 mm
For dry drilling in porcelain, granite, marble and all similar materials
2 pieces
Ø 18 / 22 / 27 / 35 mm
For dry drilling in porcelain, granite, marble and all similar materials
4 pieces
Ø 45 / 53 mm
For dry drilling of fine stoneware, granite, marble and similar materials
Housing made of high-quality C45 steel
2 pieces

Technical specifications

Max. rated speed: 13300 rpm
Working depth: approx. 35 mm

material

steel

Weight

Ø 30 / 68 mm
30mm: 123g
68mm: 303.5g
Ø 18 / 22 / 27 / 35 mm
18mm: 91g
22mm: 97.4g
27mm: 105.3g
35mm: 152.3g
Ø 45 / 53 mm
45mm: 198g
53mm: 223g

PARKSIDE® diamond tool sharpener / grinding plate

For grinding chisels, serrated or curved blades. Extendable sharpening rod. Length: approx. 20 cm
For sharpening knife blades, fishhooks and darts. With an extendable sharpening rod. Length: approx. 20 cm
For sharpening cutting tools. Grain size: 200 (coarse), 300 (medium), 400 (fine). Approx. W 25 x H 76 mm

Parkside Diamond Cutting Disc PDTS 2 A1

IAN: 331946

Features
Diamond Cutting Disc PDTS 2 A1
Durable with high cutting power
For cutting construction materials such as concrete, brick and roof tiles
For standard angle grinders (suitable for e.g. Parkside, Bosch, Black & Decker, Festo, Kress, Makita, Metabo)
Suitable for all dry cutting jobs
MPA tested
Material of disc body: 65Mn steel
Segment dimensions: 10 x 2.6mm (H x W)
Rotation speed: max. 6600 rpm / max. 80m/s
