Tag: Oil

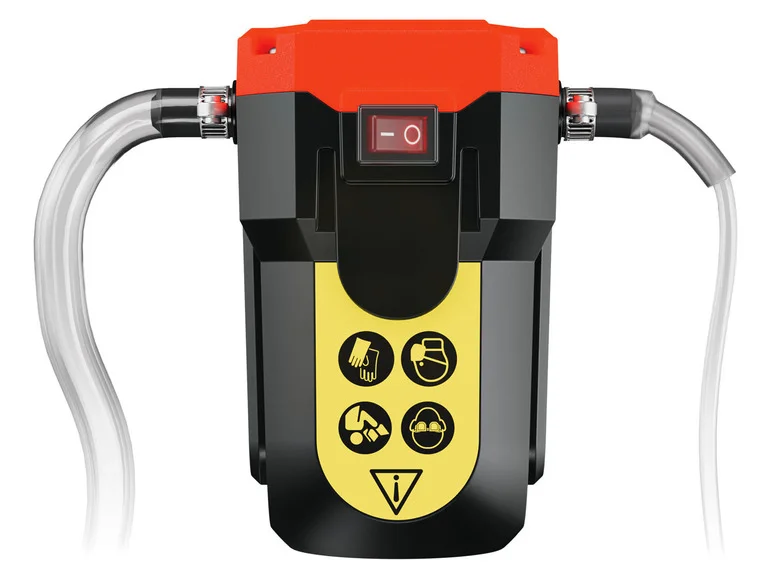

ULTIMATE SPEED Oil change pump 12 V UOP 12 C1, 60 W
Product description

oil change pump powered by 12 V vehicle battery
ideal for a clean and simple oil change
for pumping out engine, diesel and heating oil
easy to use thanks to the use of a long suction and drain hose (1.2 m / 2 m)
connection terminals with insulated grips and an extremely practical spiral cable
solid housing with non-slip feet

included accessories: spiral cable with connection clamps, 1 suction hose 1.2 m, 1 drain hose 2.0 m, 2 clamps

Technical data

power consumption: 60W
working time: 30 min
performance:
engine oil max. 60°C: approx. 0.2 l/min
diesel oil, fuel oil: approx. 1.5 l/min

Dimensions

approx. 13.3 x 12.9 x 8.5 cm (L x W x H)

Files

User manual 1

Brand Name

Ultimate Speed

EAN

• 4055334592086

IAN

373292

Product description

• Oil Pump 12V UOP 12 C1
• Powered by a 12V car battery
• For clean and easy oil changes
• For pumping out engine oil, diesel and heating oil
• Easy to handle with long suction and discharge hoses (1.2m / 2m)

Description of parts
Appliance
[1] On/off switch
[2] Pump casing
[3] Battery connecting cable
[4] Positive pole clamp (+) (red)
[5] Negative pole clamp (‒) (black)
[6] Drain hose connector (OUT)
[7] Protective caps
[8] Suction hose connector (IN)
Accessories
[9] Suction hose (Ø 6 mm)
[10] Hose clamp
[11] Drain hose (Ø 12 mm)
Technical data
Model number UOP 12 C1
Input voltage 12 V
(direct current)
Power input 60 W
Max. running time tmax 30 min
Max. temperature ϑmax 60 °C
Protection class III/
IP rating IPX4

Output (pump capacity)*:
diesel fuel / heating oil approx. 1.5 l/min
engine oil (60 °C) approx. 0.2 l/min
Max. discharge head 0.7 m
Max. permissible pressure 0.3 MPa / 3 bar
Weight (incl. accessories) approx. 890 g
Sound pressure level approx. 70 dB(A)

• The capacity may diverge from given data,
  depending on the temperature and type of oil

✓ Operation via 12 V car battery
✓ For pumping out engine oil, diesel and heating oil
✓ Easy to use thanks to the long suction and drainage hose

ULTIMATE SPEED® oil pump 12 V, 60 W
properties

Operation via 12 V car battery
Ideal for clean and easy oil changes
For pumping out engine oil, diesel and heating oil
Easy handling thanks to the long suction and drainage hose (1.2 m / 2 m)
Connection terminals with insulated handles and practical spiral cable
Robust housing with non-slip feet
Delivery rate I : engine oil (max. 60 ° C) approx. 0.2 l / min, diesel, heating oil approx. 1.5 l / min
Power consumption: 60 W
Max. Operating time: 30 min

Dimensions

approx. L 13.3 x W 12.9 x H 8.5 cm

scope of delivery

1 oil pump incl. Spiral cable with connection terminals, 1 suction hose (1.2 m), 1 drain hose (2.0 m), 2 clamps

I Delivery rate can vary depending on the material and temperature
