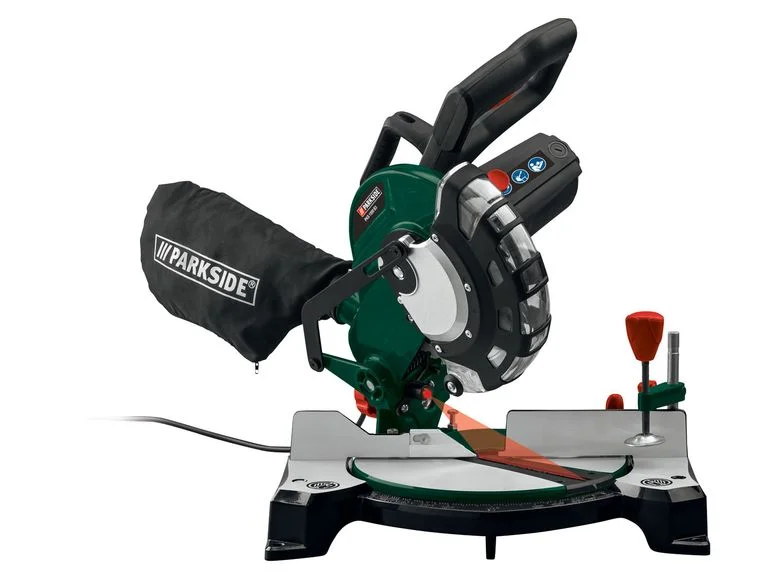

PARKSIDE miter saw PKS 1500
properties
For precise sawing of wood and plastic
Laser for increased cutting precision
Infinitely inclinable saw head
Miter can be adjusted continuously or with fixed angles
Clamping device and lateral support bracket for fixing the workpiece
Compact design with a practical handle
Easy to attach dust bag
Can also be connected to external dust extraction
Suitable for fixed workbench assembly (fastening material not included in delivery)

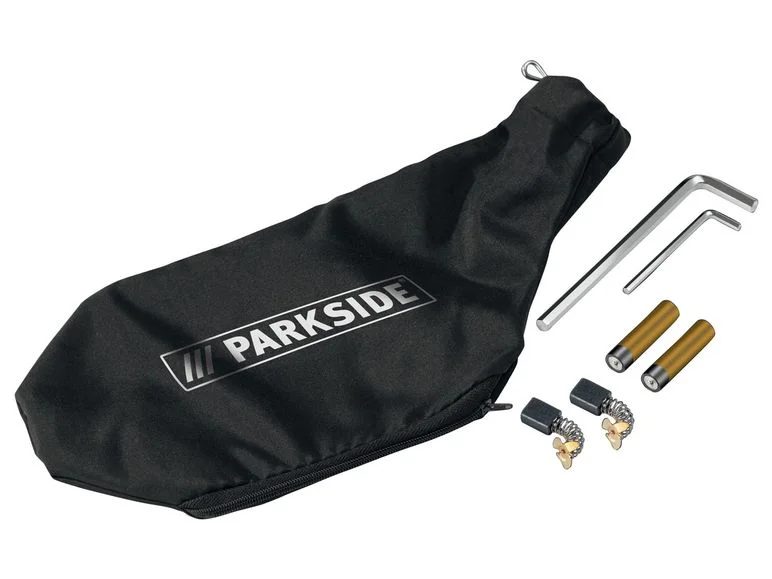

Accessories included: 1 dust bag, 1 tool for changing the saw blade, 1 tool for setting the workpiece stop, 2 replacement carbon brushes, 2 alkaline batteries (for laser)
Including instructions
Technical specifications
Input power: 1500 watts
Idle speed: 5000 min-¹
Inclination setting: 0 ° to 45 °
Miter setting: -45 ° to + 45 °
Cutting length: max. 120 mm
Cutting height: max. 60 mm (35 mm at 45 °)
Saw blade: Ø 210 mm / 48 teeth (pre-assembled)
Cutting line preview: laser
material
Turntable, base plate, housing: die-cast aluminum
Dimensions
Total (without accessories; machine head in the lower position): approx. 405 x 420 x 300 mm
Total (without accessories; machine head in upper position): approx. 405 x 340 x 450 mm
Tension clamp: approx. 88 x 51 x 125 mm
Workpiece support: approx. 190 x 98 x 22 mm (Ø 8 mm)
Anti-tip bar: approx. 162 x 208 x 30mm (Ø8 mm)
Dust bag: 3approx. 10 x 160 mm
Cable length: approx. 2 m
Weight
approx. 7.6 kg
