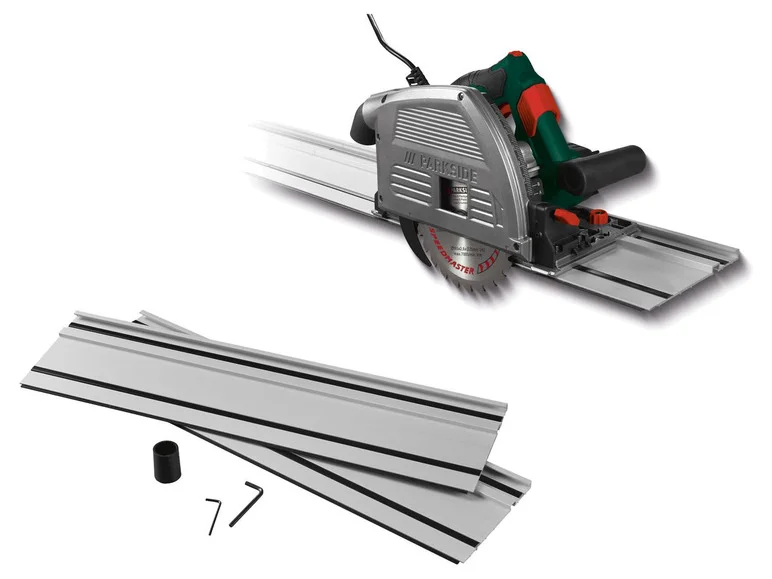

PARKSIDE® plunge-cut saw with rail »PTSS 1200 C2«
properties
For precise cuts in wood, plastic or lightweight building materials such as plasterboard
With 2-part guide rail made of aluminum – mountable in 2 lengths (70 cm or 140 cm)
Working close to the wall up to 15 mm – ideal for shadow and expansion joints
Infinitely inclinable saw blade for exact miter cuts
Cutting depth continuously adjustable from 0–56 mm
Including riving knife – prevents the saw blade from getting jammed
The saw blade is easy to change thanks to the SPINDLE LOCK spindle lock
Ergonomic soft grip with safety switch
Connection for external dust extraction
Suitable for standard saw blades with a diameter of 165 mm
Included accessories: Universal saw blade (∅ 165 mm with 24 teeth, pre-assembled), 2-part saw rail with connecting piece, 2 assembly keys, 1 chip ejection adapter
Technical specifications
Rated consumption: 1200 W
Rated idle speed: 5200 min -1
Cutting angle: 90–45 °
Max. Depth of cut at 90 °: 56 mm
Max. Depth of cut at 45 °: 42 mm
Locking: SPINDLE LOCK
Cable length: 4 m
material
Housing: polypropylene, fiberglass
Saw bar: aluminum profile
Base plate: die-cast aluminum
Dimensions
Plunge-cut saw with pre-assembled saw blade: approx. L 337 x W 241 x D 227 mm
Dust extraction adapter: approx. Ø 34.5 x 46 x Ø 36.8 mm
Saw rail (2-part) with connecting piece: each approx. L 700 x W 182 x D 14.6 mm
Weight
Plunge-cut saw with pre-assembled saw blade: approx. 4590 g
Dust extraction adapter: approx. 15.5 g
Saw rail (2-part) with connecting piece: approx. 2102 g
