Powerfix
94516
✓ Easy lifting and lowering
✓ Versatile in use
✓ Integrated braking system

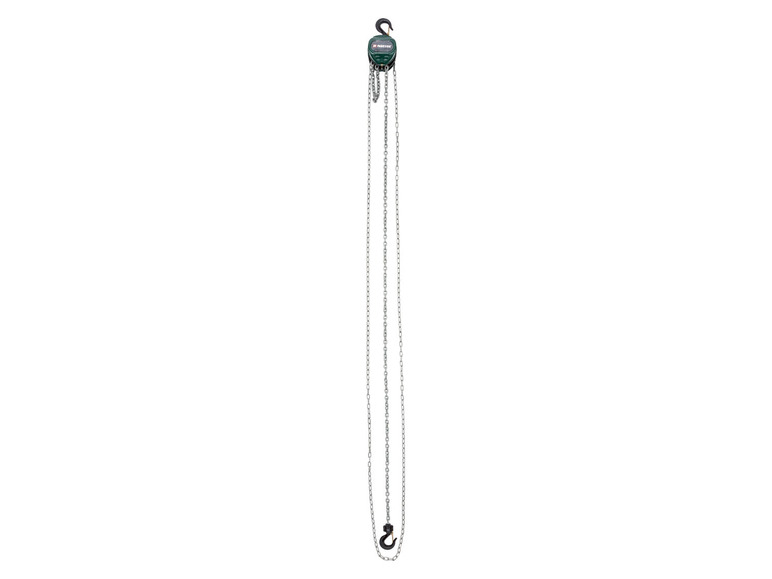

PARKSIDE chain hoist »PKZ 1000 A1«, max. 1000 kg
properties
Easy lifting and lowering of loads
Versatile
Integrated braking system – loads are held securely at any lifting height
Rotatable load and suspension hook with safety bracket
Technical specifications
Load capacity: max. 1000 kg
Lifting height: 3 m
Length of operating chain: 2500 mm
Lift chain length: 3000 mm
Control chain thickness: Ø 4.8 mm
Thickness lifting chain: Ø 6mm
material
stole
Dimensions
approx. 146 x 128 x 155 mm
Weight
approx. 9.7 kg
PARKSIDE® chain hoist »PKZ 1000 A1« with integrated braking system
properties
Easy lifting and lowering of loads up to 1000 kg
Overcomes differences in height of approx. 3 meters
Integrated braking system – safe holding of loads at any lifting height
Rotatable load and suspension hook with safety bar
Robust, powder-coated metal housing
Including instruction manual
Nominal leverage: 1000 kg
Lifting height: approx. 3.00 m
Load securing: Integrated braking system
material
stole
Dimensions
Load chain: approx. L 3 m
Hand chain: approx. L 2.5 m
weight
approx. 9.75 kg
characteristics
Overcomes height differences of approx. 3 meters
Integrated braking system – safe holding of loads at any lifting height
Rotatable load and suspension hook with safety bar
Easy lifting and lowering of loads up to 1000 kg
Robust, powder-coated metal housing
Load hook with safety bracket
Closed metal housing
Low construction
Fastening with safety hooks
Technical specifications
Nominal leverage: 1000 kg
Lifting height: approx. 3.00 m
Length of load chain: approx. 3 m
Length of hand chain: approx. 2.5 m
Control chain thickness: Ø 4.8mm
Thickness lifting chain: Ø 6mm
Dimensions
approx. 146 x 128 x 155 mm
Weight
approx. 9750 g
SEILHEBEZUG / ELECTRIC HOIST / PALAN ÉLECTRIQUE PSZ 600 A1
IAN: 320664
Features
Electric Hoist PSZ 600 A1
Powerful electric motor with thermal overload protection
Automatic brake secures load – even during power outages
High-quality, torsion-free steel cable – prevents load twisting
Additional hook with integrated pulley for double load capacity
Automatic limit stop for winding and unwinding
Safety switch with emergency stop button
2 attachment brackets for mounting on a square tube or square swivel arm (square tube / square swivel arm not included)
Technical data
Rope Hoist PSZ 600 A1
Nominal voltage: 230 V~, 50 Hz
Nominal current: 4.6 A
Rated power: 1050 W
Duty type: S3 20 % 10 min:
Permissible load: 300 kg* | 600 kg**
Lifting height: 12 m* | 6 m**
Nominal speed: 8 m/min* | 4 m/min**
Steel cable diameter: 4.5 mm
Steel cable tensile
strength: 1770 N/mm²
Protection class: I
Drive group: M1
Degree of protection: IP54
Operating conditions
(Height above sea level:
Max. 1000 m):
0 to +40 °C
< 80 % relative humidity
Storage conditions: –25 to +55 °C
< 80 relative humidity
Net weight: 17.5 kg
*Set-up as fixed pulley
** Set-up as block and tackle with 2 rope hoists
and pulley
Duty type S3 20 % 10 min:
S3= Intermittent duty without influence of the
start-up process. Within a given 10 minute
period, the maximum operating time is 20 %
(2 minutes).
IAN: 56081
Features
Optimal bicycle storage – space-saving and gentle on tyres
Rope hoist system for mounting in basement or garage with ceilings up to 4m high
Secures with own weight
Easy and safe to use with reverse locking system
Sturdy steel hooks with soft coating to prevent scratches
With handle for lowering rope in comfort
Fits all standard bicycles
Set contains:
13m nylon rope, 2 steel brackets for ceiling mounting and 2 steel hooks
Includes fastenings and assembly instructions
Max. load: 20kg
IAN: 56081
Features
Optimal bicycle storage – space-saving and gentle on tyres
Rope hoist system for mounting in basement or garage with ceilings up to 4m high
Secures with own weight
Easy and safe to use with reverse locking system
Sturdy steel hooks with soft coating to prevent scratches
With handle for lowering rope in comfort
Fits all standard bicycles
Set contains:
13m nylon rope, 2 steel brackets for ceiling mounting and 2 steel hooks
Includes fastenings and assembly instructions
Max. load: 20kg
KETTENZUG 1000 KG PKZ 1000 A1 CHAIN HOIST 1000 KG PKZ 1000 A1 PALAN Á CHAÎNE 1000 KG PKZ 1000 A1
IAN: 316698
Features
Hand Chain Hoist 1000 kg PKZ 1000 A1
Easy lifting and lowering of loads up to 1000kg
Overcomes height differences of approx. 3 meters
Integrated braking system ensures loads are securely held at every lifting height
Rotatable load- and suspension hook with safety loop
Robust, powder-coated metal housing
characteristics
Overcomes height differences of approx. 3 meters
Integrated braking system – safe holding of loads at any lifting height
Rotatable load and hanging hook with safety bar
Easy lifting and lowering of loads up to 1000 kg
Robust, powder-coated metal housing
Load hook with safety bracket
Closed metal housing
Low construction
Attachment with safety hook
Technical specifications
Nominal lever load: 1000 kg
Lift height: approx.3.00 m
Load chain length: approx. 3 m
Length of hand chain: approx.2.5 m
Operating chain thickness: Ø 4.8mm
Thickness chain: Ø 6mm
Dimensions
approx. 146 x 128 x 155 mm
Weight
approx. 9750 g
